MetaRail™ Supplemental Pure UVA + UVB LED Lighting Instrument

The MetaRail™

AgricUltra specifically designed the UVbased MetaRail to stimulate, enhance and elevate the production of secondary metabolites in Cannabis plants (particularly the THC and terpene profiles). This supports producer-inspired plant profiles that lead to premium and unique offerings in the marketplace.

The MetaRail is highly modular and adaptable with three basic power densities. It has customizable lengths from 2 to 8 feet (or longer if required), and will easily integrate into existing grow strategies.

Plastic and glass lens coverings block 95% of UV at its most effective wavelength. The MetaRail uses a quartz crystalline lens which allows for over 85% more UVB to be delivered to the canopy than traditional grow lights.

Multi-Channel Control with Dimming enables growers to develop proprietary light recipes, helping you develop products that are unique to your brand.

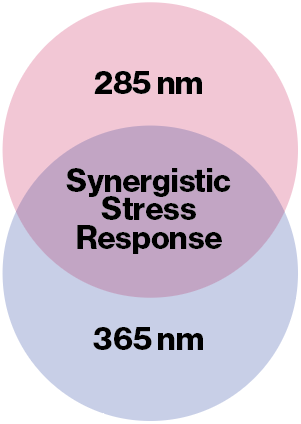

Synergistic Stress Response.png

285 nm LED is proven to elevate secondary metabolites, as well as mold elimination and pest control.

365 nm + 285 nm LEDs aid in plants’ receptiveness to photons.


The MetaRail can also be configured for increased power density, which will optimize plant attributes—such as improving flavour in strawberries and increasing THC levels in Cannabis plants. The fixture includes both UVA and UVB wavelengths, and can be customized with advanced PAR or IR spectrums, allowing for proprietary recipe development.


RailSideView

Operational Information

Distance from Canopy: 60 cm (2’)
Fixture Spacing: 123 cm (4')
Cooling Method: Heat Sink (Passive)
Maximum Temperature: 52 C (125.6 F)
Mounting Type: Cable
Mounting Direction: Vertical or Horizontal
Dimming: Optional
Remote Control: Optional


Dimensions

Length: 120 cm (47.24")
Width: 6.2 cm (2.44")
Height: 7.5 cm (2.95")
Weight: 18.14 kg (40 lbs.)


Electrical

Range: 120-277V
Phase: Single


Research Partners

AgricUltra has entered into a research collaboration with Ryerson University and its newly established Ryerson Cannabis Innovation Complex, as well as the Department of Mechanical Engineering, to conduct Cannabis research.
Learn more.



FEATURES & BENEFITS


Ability to increase total THC levels by 30% based on growth strategies and strain type (Ask us how)


Potential to increase terpenes by up to 60%


Potential for outright elimination of mold

Boosts secondary metabolites all plants, which enhances their taste, texture and nutritional content


Reduces pest infestations


Employs passive cooling, which eliminates the need for fans and prevents fan failure and its associated costs


Extends shelf life in herbs, salad greens and strawberries


UVA POWER OUTPUT

Optical Power (mw): 900
Power Density (W/m2): 10.5
Fluence Angle (Degrees): 120°
Number of UVA LEDs: 30
UVA/UVB Ratio: 3:4
Average Umol/m^2/s at 2’ from canopy: 32


UVA Normalized Radiant
Flux Density Contour MAP

Average = 10.5W/m^2 = 32 µMol/s/m^2

Screen Shot 2018-08-03 at 1.24.06 PM.png
6x (4’) Fixtures

6x (4’) Fixtures

Peak Power:1.44E-1
Avg. Power: 1.1E-1
Min Power: 5.63E-0

4x (4') Fixtures

4x (4') Fixtures

Peak Power:1.44E-1
Avg. Power: 9.93E-1
Min Power: 2.84E-2

UVB POWER OUTPUT

Optical Power (mw): 2
Power Density (W/m2): 0.21
Fluence Angle (Degrees): 125°
Number of UVA LEDs: 40
UVA/UVB Ratio: 3:4
Average Umol/m^2/s at 2’ from canopy: 0.5


UVB Normalized Radiant
Flux Density Contour MAP

Average = 0.21W/m^2 =.5 µMol/s/m2µMol/s/m^2

Screen Shot 2018-08-03 at 1.24.06 PM.png

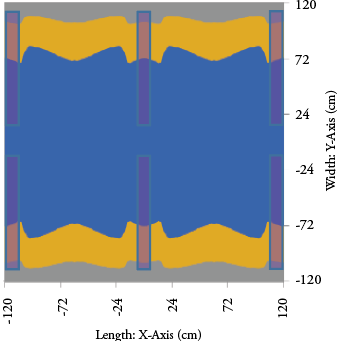

6x (4’) Fixtures

6x (4’) Fixtures

Peak Power:2.55E-1
Avg. Power: 2.08E-1
Min Power: 1.19E-1

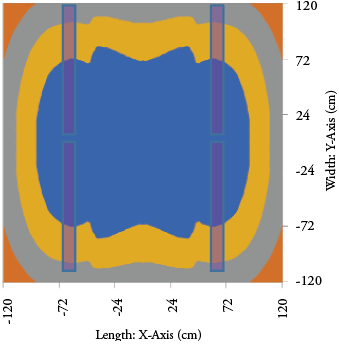

4x (4’) Fixtures

4x (4’) Fixtures

Peak Power:2.55E-1
Avg. Power: 1.86E-1
Min Power: 5.97E-2
